Non Woven Two Color Screen Printing Machine

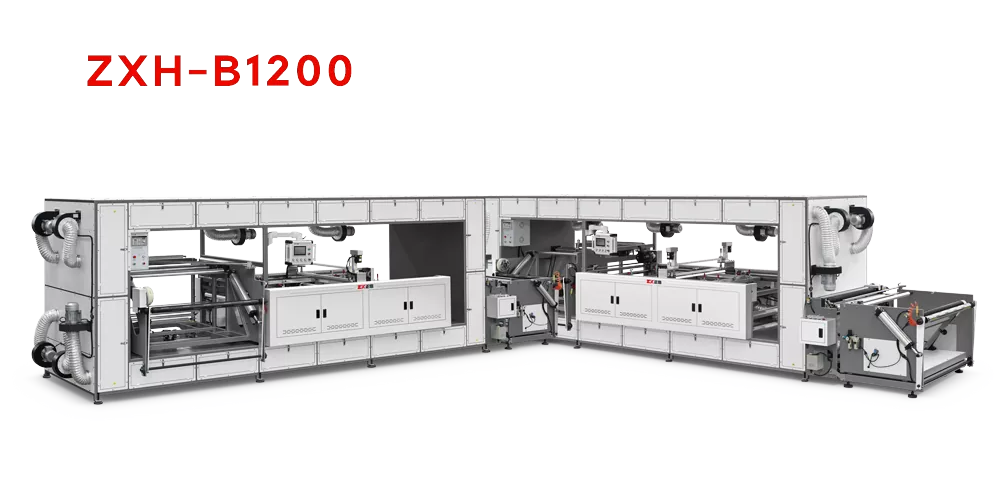

The ZXH-B1200 Two Color Screen Printing Machine, manufactured by EZ TECH's supplier and featuring an integrated structure, is equipped with an independent drying system. It enables simultaneous double-color printing, significantly enhancing production efficiency while ensuring the accuracy of the printing registration and the color saturation of the patterns. It is the main model for medium to large-scale orders.

Differentiation selling points

1. Dual-color synchronous printing, efficiency doubled

Compared to single-color printing machines, this Non Woven Two Color Screen Printing Machine adopts a dual-printing unit design, which can complete the printing of two colors at once without the need for secondary feeding. The production efficiency is directly doubled, significantly shortening the order delivery cycle, and is suitable for orders of multi-color pattern non-woven bags.

2. Modular structure, more flexible maintenance and upgrade

The dual-color unit adopts an independent modular design, which can be individually debugged or maintained without affecting the operation of the other unit; when there is a demand for upgrade in subsequent orders, it can also be expanded according to the requirements, resulting in a longer equipment lifespan and more guaranteed investment.

3. Independent long drying channel, dual-color ink thoroughly dried without smudging

Equipped with an independent drying channel, the drying temperature and air volume are optimized based on the ink characteristics of dual-color printing. After each color of printing, it can be fully dried, avoiding smudging and color crossover problems when the two colors are superimposed, and ensuring stable product quality.

4. Non-woven fabric-specific tension control, universal for thin and thick materials

Our Non Woven Two Color Screen Printing Machine has optimized the tension control system for non-woven fabric materials. Materials ranging from 70 to 150g/㎡ can be stably conveyed without any stretching deformation or feeding deviation, ensuring the accuracy of the printing pattern position and improving product consistency.

MACHINE PARAMETERS

Equipment Function Configuration

Dual Printing Units: Two independent screen printing units that can simultaneously complete two-color printing. They support combined printing of logos, patterns, and text. The colors are rich and the edges are clear.

Independent Drying System: Each printing unit is equipped with an independent drying device. The hot air is uniform, and the ink dries thoroughly, avoiding color bleeding and smudging, and improving the quality of the finished products.

High Precision Tension Control: The Non Woven Two Color Screen Printing Machine adopts a servo tension control system. The non-woven fabric transportation is stable, and the material feeding accuracy is high. It will not cause material stretching deformation due to excessive tension, ensuring the precise position of the patterns.

PLC Central Control: The entire machine adopts PLC centralized control. The touch screen human-machine interface is intuitive, allowing for the setting of printing parameters, speed, and drying temperature. It can be started with one click, and even beginners can quickly get the hang of it.

Safety Protection Devices: The equipment is equipped with full-enclosure safety protection and fault alarm functions. When abnormal situations occur during operation, it will automatically stop, ensuring the safety of the operators and reducing equipment failure losses.
