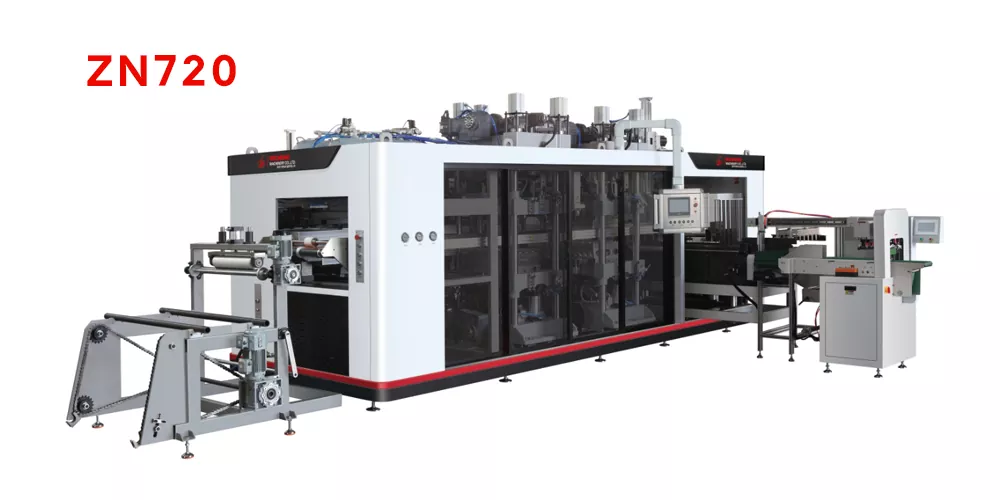

Thermoforming Machine With Packing Solution

EZ Tech manufacturer supplies a Thermoforming Machine with Packing Solution, equipped with a mature PLC touch control system and servo film advancing mechanism. The operation logic is coherent, from base film stretching and forming, film attachment and sealing to final product cutting and regular material collection, all without human intervention. It is suitable for continuous large-scale production scenarios. The equipment supports various mainstream processes such as vacuum packaging, modified atmosphere preservation, and cling film packaging. Both flexible and rigid packaging films are compatible. It is widely used in standardized packaging operations for categories such as fresh meat, seafood, pre-prepared meals, medical devices, small hardware accessories, and small daily items.

Core Structure and Operating Flow

The entire Thermoforming Machine with Packing Solution is divided into seven independent functional modules according to the process flow. The module layout is compact and the partitions are clear, facilitating daily inspection and maintenance. First is the upper and lower film unwinding unit, which adopts a double-station film frame design, supporting continuous film feeding without stopping, reducing production interruptions caused by material replacement, and real-time monitoring of film material quantity by photoelectric sensors, with automatic warning and shutdown in case of material shortage. Then the film enters the thermoforming station, where it is heated at a constant temperature and stretched by the negative pressure of the mold, shaping flat film into packaging grooves of different depths and shapes. The mold can be flexibly replaced according to the product shape. After container shaping, it enters the filling station, which can be connected to automated feeding equipment or have a reserved manual feeding window, suitable for different forms of materials such as solid, semi-solid, and liquid.

After the material filling is completed, it enters the sealing and gas regulation station. According to the requirements, it can complete pure vacuum sealing, mixed gas replacement for preservation, isolating oxygen to inhibit bacterial growth, and extending the storage period of the goods. The entire sheet packaging after sealing undergoes longitudinal and transverse cutting by the precise cutting unit. The knife group operates smoothly, with smooth cuts without burrs or membrane material adhesion, and optional easy-tear openings and hole punching functions can be selected to meet the display requirements of supermarkets. Finally, the finished product is transported to the rear packaging station, where stacking, material collection, and arrangement are completed, achieving a closed-loop process from forming - packaging - discharging - sorting. The transmission components of each station in the equipment use maintenance-free bearings and silent transmission structures, with low vibration during operation and strong stability during long-term continuous operation.

Core product advantages

Integrated design for complete integration, significantly reducing labor and space costs

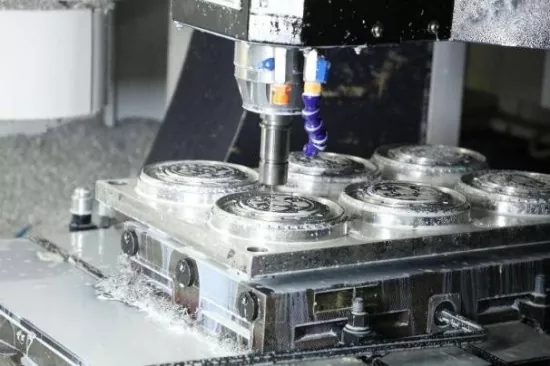

Quickly switch molds and be compatible with production of various packaging specifications.

Multi-locking preservation technology, with outstanding packaging protection performance

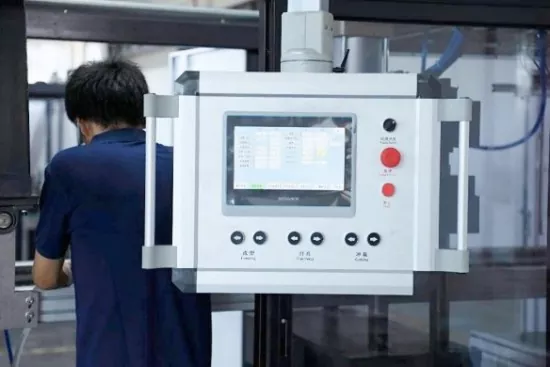

Intelligent control system, with simple operation and comprehensive safety protection.

Low-loss energy-saving and environmentally-friendly design

Compatible Materials and Application Scenarios

Compatible Packaging Film

Our Thermoforming Machine With Packing Solution is compatible with common food-grade stretch films such as PA, PP, PE, and EVOH, as well as medical composite films and wear-resistant industrial packaging films. The film has a wide applicable thickness range and can meet the material requirements for different storage and transportation environments such as high-temperature sterilization, low-temperature refrigeration, and regular storage.

Main Application Scenarios

Food Industry: Vacuum / Modified Atmosphere preservation packaging for chilled meat, seafood, pre-prepared dishes, cheese, cooked food, fruits and vegetables, baked pastries, etc.

Medical Industry: Disposable medical devices, medical consumables, drug inner packaging, meeting medical cleanliness and sealing standards.

Industrial Products Industry: Dust-proof, shock-proof, and moisture-proof packaging for small hardware parts, electronic components, bathroom accessories.

Consumer Products: Cosmetic samples, cleaning products, small household accessories, etc., for regular sealing packaging.

Daily Operation and Usage Specifications

Pre-check before startup: Before starting the machine, check the fixation status of the film frame, the sharpness of the knife group, the integrity of the sealing rubber strip, as well as the air pressure and water pressure parameters. Confirm that all safety protection devices are functioning properly, and then start the equipment for a no-load test run.

Operation Control: During operation, strictly set the heating temperature, film running speed, and vacuum parameters according to the material characteristics. Do not use films and molds beyond specifications; do not touch the transmission, cutting, and heating positions during operation.

Post-operation Cleaning: After daily production, cut off the power and cool down. Use neutral cleaning agent to wipe the surface of the equipment, the forming mold, and the sealing position, remove the residual materials and stains, and keep the equipment clean. In food production scenarios, strict disinfection procedures must be followed.

Regular Maintenance: Add special lubricating oil to the transmission chain, bearings, and cylinders according to the usage cycle; regularly inspect the vacuum pump, air path pipelines, and electrical circuits, replace aging seals and wear-prone parts in time, and extend the overall service life of the equipment.

FAQ

Q: Can this machine produce different types of packaging?

A: It supports vacuum packaging, modified atmosphere packaging and skin packaging to meet diverse preservation and packaging demands.

Q: Is it easy to change molds for different product sizes?

A: The quick-release mold structure allows fast replacement without professional tools for size switching.

Q: Does the machine support non-stop film changing?

A: Equipped with dual-station film racks, it realizes non-stop film splicing to reduce production downtime.

Q: What materials can be used for packaging films?

A: It works with PA, PP, PE composite films and other food & industrial grade stretch films.

Q: Will the cutting edge leave burrs after slitting?

A: The precision cutter group ensures smooth cuts without burrs or film adhesion.

Q: Can the machine work in food production workshops?

A: The full stainless steel structure meets food hygiene standards and is suitable for food processing lines.

Q: Does the equipment provide fault self-diagnosis function?

A: Yes, it will automatically stop and display fault information when abnormal conditions occur.
