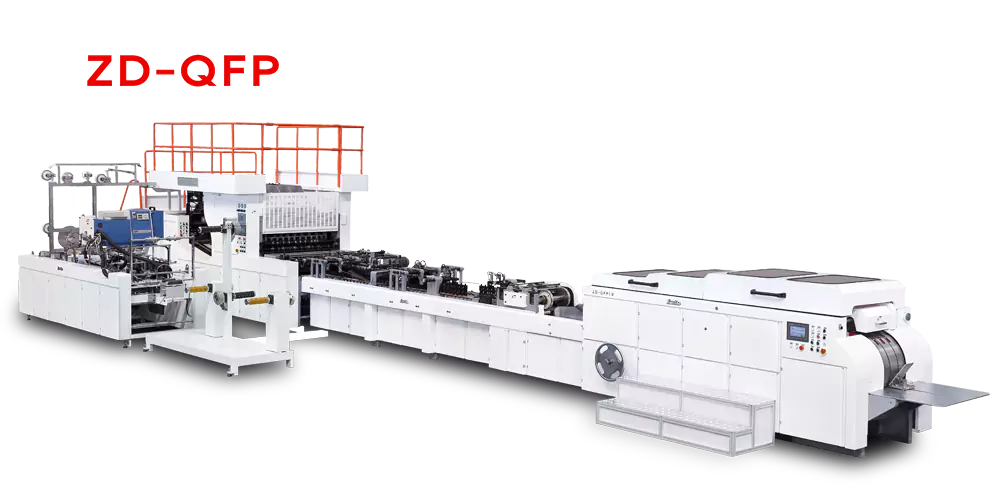

By implementing steps including handle making, handle application,bag mouth folding,tube forming and bottom forming within a fully automatic process,this machine can effectively save labor costs. Equipped with advanced pre-heap paper feeder, this EZ TECH’s China Fully Auto Sheet-fed Square Bottom Paper Bag Machine can realize non-stop feeding, thereby improving the production capacity. with high quality in many different forms,thoroughly liberate the hands for making small-sized paper handbags,and bring more profit for the customer.
This Fully Auto Sheet-fed Square Bottom Paper Bag Machine can make 3 different kinds of paper bags,according to customers' various requirements, from various kinds of paper,including kraft paper,coated paper and laminated paper,etc.
Optional scissor clamp system and toggle clamp system,bring machines the advantage of coping with thin paper as well as thick paper (toggle clamp system can process some kind of paper with thickness 250gsm).
Optional transfer systems(belt-type and roller-type)for tube forming,meet requirements of different paper bag making processes for various kinds of paper.
Special customized model design enlarges the production range of Fully Auto Sheet-fed Square Bottom Paper Bag Machine as well as the business range of customers(optional big/small side pasting device;bag width can reach 500mm or bottom size can reach 250mm).
Optional flat handle unit,brings more choices for bag making to customers and "non-creased"revolution to traditional shopping bag industry of Fast Moving Consumer Goods;optional servo motor, can replace traditional driving shaft,to efficiently reduce material waste and labor cost.
Can be equipped with creative Roll-fed Unwinding and Cutting Unit,which can help users to produce top-folded paper bags with handles from paper roll.
|
Model |
ZD-QFP08 |
ZD-QFP14 |
ZD-QFP18 |
ZD-QFP18S |
ZD-QFP20 |
|
Paper Width |
470-780mm |
550-1050mm |
630-1250mm |
710-1250mm |
710-1320mm |
|
Paper Length |
240-530mm |
340-630mm |
340-630mm |
400-630mm |
360-630mm |
|
Paper Thickness |
100-160g/m 2 |
100-220g/m 2 (250g/m 2 ) |
100-220g/m 2 (250g/m 2 ) |
100-220g/m 2 (250g/m 2 ) |
100-220g/m 2 (250g/m 2 ) |
|
Bag Body Width |
135-250mm |
180-350mm |
220-450mm |
240-500mm |
240-500mm |
|
Bag Body Height |
180-395mm |
200-480mm |
200-480mm |
280-480mm |
200-480mm |
|
Bag Bottom Size |
60-130mm |
80-180mm |
80-180mm/80-220mm |
100-250mm |
100-180mm |
|
Bag mouth fold width |
35-55mm |
40-60mm |
40-60mm |
40-60mm |
40-60mm |
|
Handle rope height |
155-175mm |
170-185mm |
170-185mm |
170-185mm |
170-185mm |
|
Handle rope diameter |
Φ4-6mm |
Φ4-6mm |
Φ4-6mm |
Φ4-6mm |
Φ4-6mm |
|
Handle patch length |
114.3mm |
152.4mm |
188.5mm |
188.5mm |
188.5mm |
|
Handle patch width |
40-45mm |
40-45mm |
40-45mm |
40-45mm |
40-45mm |
|
Paper patch roll diameter |
Φ1200mm |
Φ1200mm |
Φ1200mm |
Φ1200mm |
Φ1200mm |
|
Paper patch roll width |
80-90mm |
80-90mm |
80-90mm |
80-90mm |
80-90mm |
|
Paper patch thickness |
100-250g/m 2 |
100-250g/m 2 |
100-250g/m 2 |
100-250g/m 2 |
100-250g/m 2 |
|
Max. Speed |
100bags/min |
100bags/min |
100bags/min |
80bags/min |
100bags/min |
|
Total Power |
35kw |
35kw |
35kw |
35kw |
35kw |
|
Total Weight |
Approx.20000kg |
Approx.22000kg |
Approx.24000kg |
Approx.27000kg |
Approx.25000kg |
|
Overall dimension |
L13500*W4300*H2400mm |
L16000*W4300*H2600mm |
L16000*W4500*H2600mm |
L17500*W4500*H2600mm |
L16000*W4600*H2600mm |
