Double wall cup machine

The Double Wall Cup Machine series supplied by EZ TECH factory includes two models: WT-12/22 and WT-35:

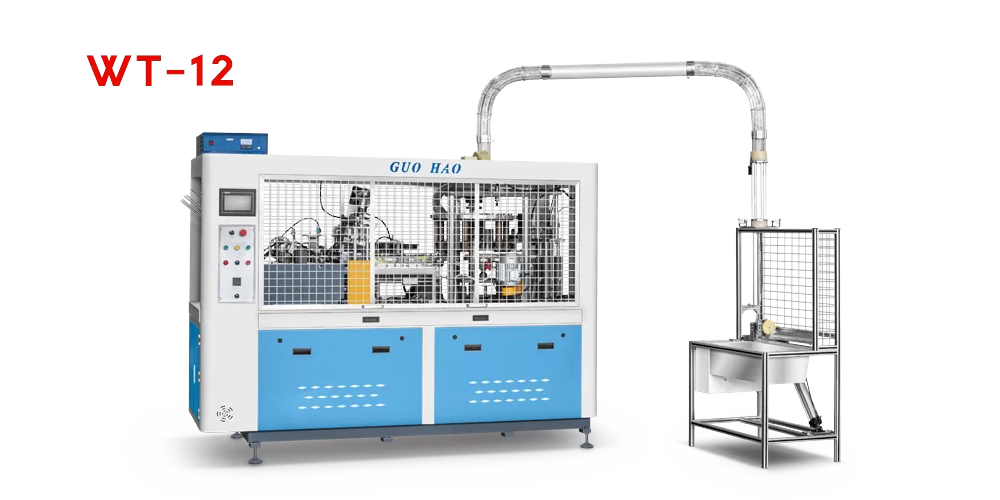

WT-12/22: Suitable for 2-22oz regular double-layer cups, with a speed of 50-80 pieces per minute. It is suitable for making coffee cups, milk tea medium cups, etc.;

WT-35: Suitable for 22-35oz large-capacity double-layer cups, with a speed of 40-60 pieces per minute. It mainly focuses on the production of large-sized double-layer insulated cups.

Both models support the production of 150-350g laminated paper, with flexible voltage compatibility. They are the main models for upgrading in catering chains and one-time disposable tableware manufacturing enterprises.

Performance and process advantages

The hollow / corrugated cup machine can handle both functions in one machine, without the need for additional equipment purchase.

Our Double wall cup machine breaks through the limitation of traditional double-layer cup machines that can only perform a single structure. The same machine can switch between hollow insulation cups and corrugated insulation cups, and can be adjusted without changing molds or modifying the equipment. Customers can produce the desired insulation cups with this machine, and one machine can cover the two mainstream demands, significantly improving the flexibility of order acceptance and doubling the equipment utilization rate.

Cam + gear transmission, stable and durable long-term operation

Using an open intermittent indexing cam mechanism and gear transmission system, combined with a longitudinal main shaft structure, the transmission is precise and the forming is stable. Even during long-term high-speed operation, there are no problems such as cup jamming, adhesion misalignment, and the failure rate is significantly reduced, and the downtime for maintenance is shortened. It is more convenient to rush orders during peak seasons.

Automatic lubrication system, smoother mechanical components and longer lifespan

The entire machine is equipped with an automatic lubrication system, which can continuously lubricate key transmission components, reducing mechanical wear and extending the equipment lifespan. At the same time, it reduces the risk of faults caused by dry components and lowers the maintenance cost. It is more stable for long-term use and easier to maintain, with lower maintenance costs.

Optimized double-layer bonding process, strong insulation and no leakage

We have deeply optimized the bonding process for double-layer cups. The inner and outer layers are evenly adhered, and the bonding is strong and does not fall off. At the same time, the insulation effect of the hollow layer / corrugated layer is guaranteed. The cups can hold hot drinks without being hot or leaking, the cup edges are smooth and do not scratch the hand, and the quality of the finished products is stable, with fewer customer complaints.

Low energy consumption, compact footprint, even for small factories, it can be easily put into production

The total power of WT-12/22 is only 2.2kW, and WT-35 is only 6kW. The energy consumption is much lower than that of traditional double-layer cup machines, and the electricity cost during long-term production is controllable. The machine body size is compact, no large-scale factory is required, and no large-scale circuit modification is needed, reducing the production threshold.

FAQ

Q1: Is the production switching between hollow cups and corrugated cups complicated?

A: No, it's not. The switch between the two cup types can be accomplished by adjusting the equipment parameters. There's no need to disassemble the machine or replace complex molds. The mode switch can be completed in just a few minutes. Ordinary workers can operate independently after simple training and won't affect the production progress of the orders.

Q2: Will the bonding of double-layer cups have problems such as delamination or misalignment?

A: No. The double-layer bonding mechanism of the Double Wall Cup Machine has been optimized. Combined with the precise temperature control system, the bonding position and temperature are controlled evenly. The inner and outer layers are firmly adhered together, and there won't be any delamination or misalignment problems. At the same time, it doesn't affect the heat insulation effect. The hot drinks are stable and not prone to leakage.

Q3: How stable is the equipment when producing large-capacity double-layer cups?

A: The WT-35 model has optimized the forming and bonding mechanisms for 22-35oz large-capacity double-layer cups. The transmission system is stable, and it can maintain the cup shape and bonding firmly for a long time of continuous production without any deformation or leakage problems. It is suitable for large-capacity hot drink cup orders.

Q4: Does the equipment support the production of PLA biodegradable paper?

A: Yes. The equipment also has good compatibility with PLA laminated paper. As long as the paper specifications are within the compatible range, it can be stably formed. No additional equipment modification is required. It is suitable for orders for environmentally friendly and biodegradable products.

Technical Parameter
