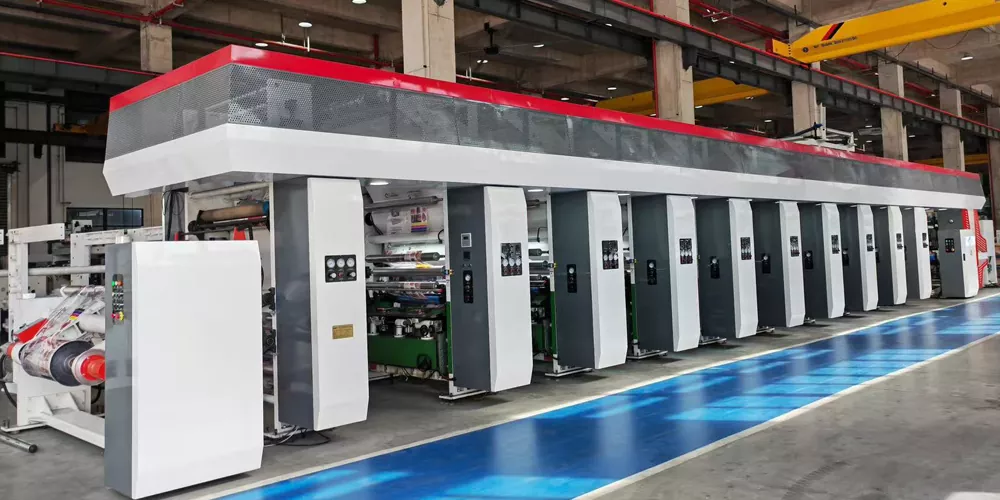

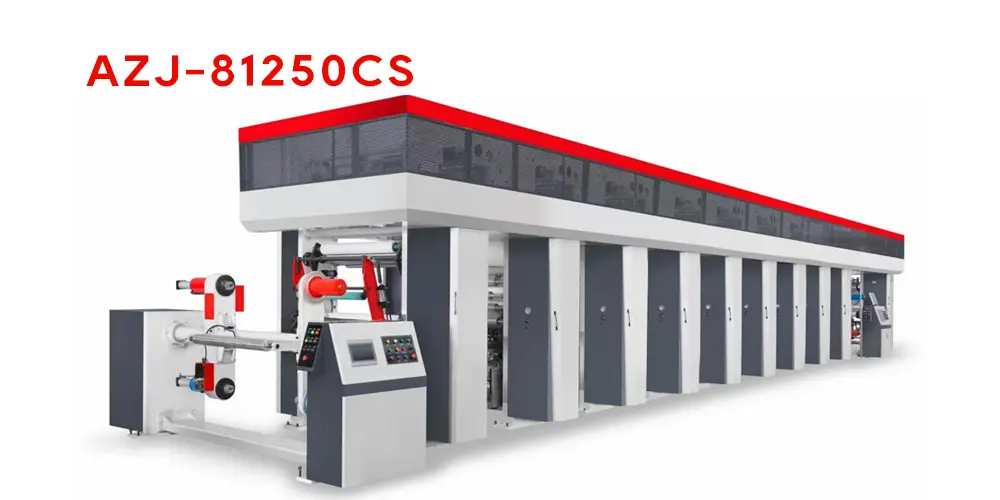

High-speed Computerized Color Register Rotogravure Press

The High-speed Computerized Color Register Rotogravure Press supplied by EZ Tech Factory is equipped with a mature photoelectric automatic color registration system. It features a bilingual operation interface and a dual-touch screen electronic control system. It can achieve high-precision automatic alignment both vertically and horizontally. During start-up, shutdown, and speed changes, material loss is extremely low, significantly improving the utilization rate of raw materials. The entire machine adopts a closed-loop tension control scheme. The tension of each unit of the feeding, loading, unloading, and rewinding is independently controlled and has stable precision. Throughout the process, problems such as sheet stretching, deviation, and wrinkling are avoided, ensuring uniform and consistent printing quality of each roll of finished products.

Product details

The entire machine integrates an independent printing unit, a wind-cooling cooling system and an electric heating drying unit. The drying area is divided into zones for constant temperature control, with the maximum temperature control reaching up to 70℃. It can not only quickly solidify the ink but also avoid damage to the film substrate due to high temperature. The loading and unloading process adopts a double-arm double-station rotating frame combined with an axisless air expansion shaft structure, supporting automatic feeding without stopping, automatic cutting, and eliminating the need to wait for rewinding. This effectively improves the overall production continuity. The core printing components such as the scraper, embossing roller, and ink tank have been optimized, ensuring uniform ink discharge and smooth scraping, which can effectively reduce ink splashing. Daily cleaning and accessory replacement are simple and efficient.

All the pneumatic components, motors, bearings, electrical switches and other key accessories of the entire machine are selected from internationally renowned brands. The overall machine has low operating noise and a low failure rate. At the same time, it is fully equipped with static elimination devices to solve the printing static hazard from the source. The maximum outer diameter of the unwinding and rewinding is of a unified specification. The overall size and load capacity have been professionally optimized for mechanics. The chassis is solid and has strong load-bearing capacity, which can maintain stable operation at high speeds for a long time. The maximum printing speed can reach 350 meters per minute, balancing production capacity, precision and durability.

Product advantages

The High-speed Computerized Color Register Rotogravure Press comes with complete auxiliary facilities such as feeding guide rollers, maintenance platforms, toolboxes, etc. The electrical and air circuit layouts are neat and standardized, and the safety configurations including grounding and protection are complete, meeting industrial safety production standards. It can be widely applied in soft packaging printing scenarios such as food packaging, daily chemical packaging, composite films, label films, etc., and is the main equipment for medium and large-scale printing factories to achieve efficient and high-precision batch production.

Main Technical Parameters

1, Flow: From left to right

2, Colors: 8

3, Maximum matreial width: 1250mm

4, Maximum printing speed: 350m/min (Depending on printing material)

5, Maximum diameter of unwinding: φ 800mm

6, Maximum diameter of winding: φ 800mm

7,Inner diameter of paper tube: φ 76

8, Diameter of Plate rolle: φ 105mm ~ φ 320mm

9, Plate roller length:800mm~1250mm

10, Color accuracy:

longitudinal ≤ ±0.1 mm (Automatic registration system, depending on the printed material)

Transverse ≤ ±0.1mm (Automatic alignment, depending on the printed material)

11Range and accuracy of tension setting: 3~25kg    ±0.5kg

12, Ink scraper move: ±5mm

13,Water for cooling:1T/h

14,Heating mode: Electric heating

15, Drying temperature: maximum temperature 70 ℃

16, Heating power of oven: 200KW

17,Max machine power:220KW

18, Machine weight: approximately 38000kg

L20000mm×W5200mm×H3500mm

Material:

OPP 15～60 μ m

CPP 15～60 μ m

BOPP 15～60 μ m

PET 12～60 μ m

Cellophane 20g～ 30 μ m

Nylon membrane 15～60 μ m

And other films with the same properties as the substrate

Main Parts And Description

1.Unwind Unit

(1) Outside slewing frame, the machining precision,has the of the machining accuracy and installationaccuracy

(2) Double-arm duplex station loading mechanism

(3)Closed-loop tension, PLC automatic control

(4)Double- uwinding roller is driven independently by two vector motors

(5) Rotary arm forward and backward by motor drive

(7)Horizontal adjustment is manual for material roll

(8)With automatic cutting knife, it can change coils without stopping the machine.

(9)Material change alarm: buzzer alarm when working diameter is 150mm

Parameters

(1) Maximum diameter of unwinding : φ800mm

(2) Maximum width of unwinding: 1250mm

(3)Inner diameter of unwinding paper tube: 3 inch

(4) The transverse accommoda of material roll: ±20mm

(5)Rotational speed of rotary frame: 1r/min

(6) Tension range: 3~25kg

(7) Accuracy of tension control: ±0.5kg

(8)Center Height of Rotary Frame: 1010mm

(9) Unwinding rack:2 Set

(10) Air shafts of unwinding (3 ")   2 Pieces

(11)Cycloid pin wheel reducer (0.37kw 17:1)                   1Set

(12) Automatic Cutting device                              1Set

(13)Electrical control boxes and systems                       1 set

2.Infeed Unit

(1) The Contra-rolling structure of steel roll and rubber roll, the clutch of rubber roller and the main engine are controlled by the central controller.

(2)Precise setting of traction tension by precision pressure reducing valve

(3) Clutch of rubber roller and adjustment of pressure by pneumatic components

(4) The traction steel roller is driven by servo motor(With Reducer machine)

(5)Tension swing roller can be tension detection by potentiometer,Closed Loop Control by Motion Controller and Servo Driver

(6)Static eliminat

Parameters

(1) Range of tension: 3~25kg

(2) Accuracy of Tension control: ±0.5kg

(3) Max pressure of rubber roller: 350kg

(4) Traction steel roll: φ200mm                            1Piece

(5) Pressing Roller: φ 140mm (Shaer A65 °~ 70 °)             1Piece

(6)Servo motor for unwinding traction(Huichuan)               1Piece

(7)Servo driver of unwinding traction(Huichuan)                1Piece

(8)Reducer  (JAPAN)                                     1Piece

(9)Ultra-Low Friction Cylinder(KCS 59-75-S1-P )              2Pieces

(10)Potentiometer                                        1Piece

(11)Rubber roller press air cylinder:SC50X25                  2Pieces

(12) Clamping device                                      1Set

3.Printing Unit

(1) Independent structure of each printing unit base and easy to install and disassemble

(2)The method of loading mode is air cap without shaft, and hige efficiency of plate replacement

(3)The lower pressure structure of the impression roller is swing arm type

(4)The regulating roller is one side regulation mode.

(5)Self-locking Limiting Device with Stamping, Locking the Stamping Cots when Shut Down

(6) The ink scraper is pneumatic structure, can adjust the three-way position and can move

(7)Horizontal Color register use the way of Circumferential direction change plate

(8)Transfer the ink by ink roller to reduce the ink spatter

(8) The ink tray is reflux and open, and up and down is manually adjusted.

(9) Air-cooling device for rapid cooling of film materials

Parameters

(1) Diameter range of printing plate roller: φ 105mm ~ φ 320mm

(2) Roller length range:800mm～1280mm

(3) Rubber roller: φ 130mm (Shaer A75 °~80 °)   convexity  8Pieces

(4)Maximum impression force: 300kg

(5) Scraper pressure: 10~100kg (continuously adjustable)

(6) Range of scraper move: ±5mm

(7) Color accuracy:

Horizontal  ≤ ±0.1mm (Automatic registration system tracking, depending on the printed material)

Transverse ≤ ±0.1mm (Automatic alignment, depending on the printed material)

(8) Water for cooling:1T/h

(10) Horizontal plate adjusting devices by manual              8Pieces

(11)Imprint device                                       8Pieces

Imprint air cylinder: (SC 63 × 125)                       16Pieces

(12) Regulating roller device                               8Pieces

(13) Scraper device                                      8Pieces

AIR Cylinder: (SDA 63 × 25-B)                        16Pieces

(14)Ink roller device                                     8Pieces

(15) Ink supply device                                     8Pieces

Stainless steel ink box                                 8Pieces

(16) Air-cooled bellows                                     8Pieces

Cooling fan: 0.55kw                                    8Pieces

(17)Diameter of cooling rollerφ150mm                       8Pieces

(18)Electrical systems                                     8Pieces

(19)Printing servo motor(Huichuan)                         8Pieces

(20)Printing Servo Driver(Huichuan)                          8Pieces

(21)Reducer     (JAPAN)                              8Pieces

4.Drying Unit

(1) Electril heating

(2)Main exhaust ducts and main exhaust fans are provided by customers

(3) Opening and closing design of pneumatic drying box for easy feeding

(4)Single unit automatic Constant temperature control

Parameters

(1) Maximum temperature inside the box:70 ℃

(2) Drying cabin                 8Sets  2000mm length

(3)Intelligent temperature control instruments                  8Sets

5.Outfeed unit

(1) The Contra-rolling structure of steel roll and rubber roll, the clutch of rubber roller and the main engine are controlled by the central controller.

(2)Precise setting of traction tension by precision pressure reducing valve

(3) Clutch of rubber roller and adjustment of pressure by pneumatic components

(4) The traction steel roller is driven by servo motor(With Reducer machine)

(5) Tension swing roller can be tension detection by potentiometer, and closed loop control by PLC and frequency converter.

(6) With a light box, it is easy to check the quality of printing

(7)Static-eliminator

Parameters

(1) Range of tension: 3~25kg

(2) Accuracy of Tension control: ±0.5kg

(3) Max pressure of rubber roller: 350kg

(4) Traction steel roll: φ 200mm                          1Piece

(5) Pressing Roller: φ 140mm (Shaer A65 °~ 70 °)           1Piece

(6)Rewinding traction servo motor(Huichuan)                  1Piece

(7)Rewinding traction Servo Driver(Huichuan)                  1Piece

(8)Reducer     (JAPAN)                                 1Piece

(9)Low Friction Cylinder(KCS 59-75-S1-P )                     2Pieces

(10)Potentiometer                                          2Piece

(11)Rubber roller press Air Cylinder: (SC50 × 25)                 2Pieces

(12) Clamping device                                       1Piece

(13)Check light box                                         1Piece

6.Rewinding Unit

(1) Outside slewing frame, the machining precision,has the of the machining accuracy and installationaccuracy

(2) Double-arm duplex station loading mechanism

(3) Rotary arm forward and backward by motor drive

(4)Closed-loop tension, PLC automatic control

(5)Double- uwinding roller is driven independently by two vector motors

(6)Check light box to check the quality of printing

(7)Shaft  loading and unloading material, quick replacement, accurate centering

(8)Horizontal adjustment is manual for material roll

(9)With automatic cutting knife, it can change coils without stopping the machine.

Parameters

(1) Maximum diameter of rewinding : φ 800mm

(2)Diameter of paper inner tube: φ 76

(3) Transversal regulations adjustment of material: ±20mm

(4)Rotational speed of rotary frame: 1r/min

(5) Tension range: 3~25kg

(6) Accuracy of tension control: ±0.5kg

(7)Center Height of Rotary Frame: 1010mm

(8) Rewinding rack    1 Unit

(9)Rewinding motor (vector variable frequency motor 7.5kw)   2Sets

(11) Air shafts of rewinding (3 ")                                 2 pieces

(12)Automatic cutting device                                     1Piece

(13)Electrical control boxes and systems                            1 set

7.Tension control unit

(1) Closed-loop tension system, motion control and servo drive control

(2)Automatic tension setting, easy to operate

8.Photoelectric Registration unit

(1)Huamao I system and servo motor together, machine speed up and down, stop and restart waste less than half material

Vertical and horizontal automatic color matching, Web video frame with guide rail can move left and right (total one control cabinet)

(2)Control with Chinese/English (2 languages)

(3)Electrical resiger color control cabinet              1Piece

9.Rack and Feeding unit

(1) Integral high strength low stress alloy cast iron wallboard

(2) The installation mode of the guide roller with two axes facing the top type.

(3) Design of modular combination

Parameters

(1) Thickness of wall panel      70mm

(2) Central distance per color group    1600mm

(3) Diameter of guide roll :    Φ 80mm Φ 100mm Φ 150mm

(4) Length of guide roll surface      1300mm

10.Others

(1) Electrostatic Elimination System:

Self-discharge electrostatic eliminator, one set of unwinding, feeding, printing,outfeeding and rewinding

(2) Gas path system

Pneumatic control is safe and reliable. All key components are imported products.

(3) Equipment

Walking tables, ladders, toolboxes, etc.              1Set

(4) Main bearing adopt from NSK,Japan

(5)Programming language adoption:Chinese/English

(6)The size of rubber roller:require by customer

Note: 1, due to the performance requirements of custom-made equipment and changes in the supply of imported accessories, the model specifications of the equipment configuration may be adjusted without reducing the performance of the machine.

2. The customer must bury the ground wire at a depth of not less than 3 meters when laying the foundation

Electronic shat (Double touch screen) Main Configuration List of Tension Control
