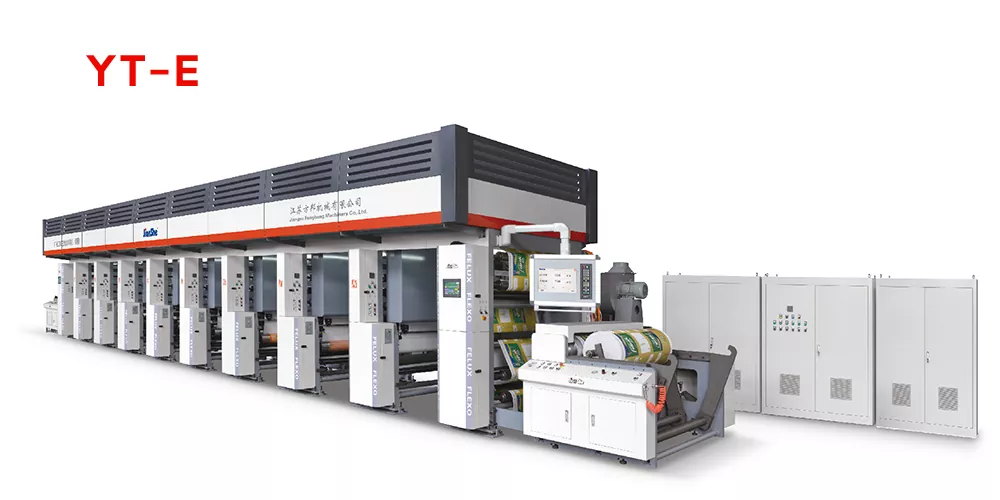

High Speed Unit-type Flexo Printing Machine

The High Speed Unit-type Flexo Printing Machine supplied by EZ TECH Factory is a modularized unit-type flexographic printing machine. The entire machine is controlled centrally by PLC and consists of multiple units such as unwinding, tension control, paper feeding traction, printing, drying, paper ejection traction, rewinding, and control. Each printing unit is independently controlled and can be configured with the number of color groups according to customer requirements to achieve multi-color registration. It uses liquid ink printing and is equipped with a dual drying system of hot air + infrared, which enables fast ink drying, resulting in clear and full-printed patterns that are less prone to smudging or fading.

Technical Data

Model number

The series includes three models: YT-1000E, YT-1300E, and YT-1500E. The maximum printing width ranges from 1000mm to 1500mm, and it is compatible with paper weights of 40-320g/㎡. It can meet the printing needs of various packaging products of different specifications.

Characteristics

Our High Speed Unit-type Flexo Printing Machine adopts a 1/8 CP gear specification, ensuring precise and stable transmission, with a registration accuracy of ±0.1mm, which can meet the printing requirements for high-precision patterns. It is compatible with various paper materials, from thin paper to thick paper, and can achieve stable printing. It is an ideal printing equipment for disposable paper cups, paper bowls, paper bags, paper boxes, and other products.

Core selling point:

1. ±0.1mm high-precision die-cutting, with high pattern reproduction accuracy

2. 320m/min high-speed printing, with efficiency far exceeding that of traditional models

3. Hot air + infrared dual drying, ink quickly adheres without smudging

4. Modular design, configurable color groups and width as needed

5. Compatible with multiple materials, it can ensure stable printing on both thin and thick papers.

FAQ

Q1: How many colors can the equipment print? Can additional color groups be added later?

A: The equipment adopts a modularized design with a unit system. At the time of manufacture, the number of color groups can be configured according to requirements. It also supports adding color groups based on order requirements later, with high flexibility. It can be gradually upgraded according to business development.

Q2: How accurate is the offset printing? Will there be any pattern misalignment issues?

A: The High Speed Unit-type Flexo Printing Machine uses precise gear transmission and tension control system. The offset printing accuracy can reach ±0.1mm. The alignment of multi-color patterns is high, and there will be no pattern misalignment or ghosting problems. The product quality is stable.

Q3: How is the ink drying effect? Will there be any smudging or fading problems?

A: It is equipped with a dual drying system of hot air + infrared. The ink dries quickly, and the patterns can be quickly fixed after printing. There will be no smudging or fading problems, even for large-area solid printing, and it can ensure the drying effect, suitable for mass production.

Q4: What are the requirements for paper types of the equipment? Which types of paper are supported?

A: The equipment is compatible with various paper types ranging from 40 to 320g/㎡, including ordinary paper, laminated paper, white card paper, and coated paper, etc. Common materials such as disposable paper cups, paper bowls, paper bags, and paper boxes can be printed stably, and no additional equipment modification is required.

Q5: Is the equipment maintenance complex? What daily maintenance is needed?

A: The modular design of the equipment makes maintenance more convenient. Daily maintenance only requires cleaning the mesh roller, printing plate roller, and drying system, regular inspection of the tension control system and gear transmission components, and adding lubricating oil. The maintenance is simple, and no complex professional maintenance is required.
