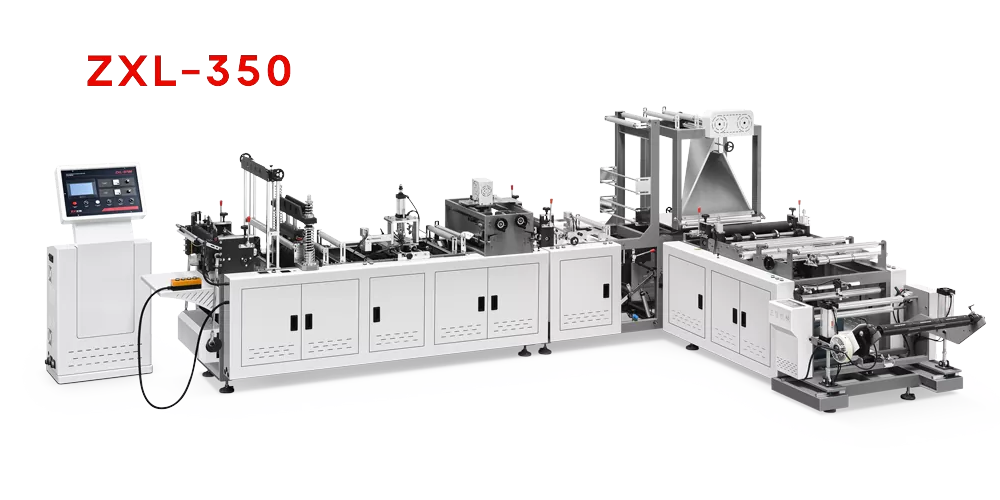

Automatic Drawstring Non Woven Bag Making Machine

The Automatic Drawstring Non Woven Bag Making Machine supplied by EZ TECH manufacturer  can produce drawstring bags with a width of 50-300mm and a height of 50-300mm. The length of the drawstring is adjustable from 40mm to 110mm. It is compatible with non-woven fabric raw materials of 20-100g/㎡. The production speed is stable at 80-200 pieces/minute. The overall size of the machine is 5000×3240×1865mm, the weight is 1600kg, the power is 15kw, and the voltage supports 380V/220V (universal). It is compact in size and can be easily installed in small and medium-sized packaging factories.

Core selling points

The drawstring and the bag body are produced as a single unit, and the finished product can be used directly.

The Automatic Drawstring Non Woven Bag Making Machine is equipped with a module for automatic drawstring transportation, threading, and fixation. It can precisely insert the drawstring into the bag opening while the bag body is being formed and then heat-seal it firmly. The drawstring position is symmetrical and the fixation is solid, without any deviation or detachment. The finished bag can be put into use directly, without the need for additional manual threading, significantly improving production efficiency.

High-speed and stable production, suitable for small-sized bag orders

The multi-axis servo synchronous control system ensures synchronized and precise feeding, forming, drawstring threading, and cutting. The production speed can reach up to 200 pieces per minute. Even during long-term continuous operation, there will be no problems such as feeding slippage or heat sealing defects. It can easily handle large-scale rush production requirements for small-sized orders such as gift bags and storage bags.

Light and thin raw materials friendly, suitable for various non-woven fabric materials

For lightweight non-woven fabrics with a density of 20-40g/㎡, the equipment adopts flexible feeding and precise temperature-controlled heat sealing design. The feeding does not pull, and the heat sealing does not have loose edges. It can ensure both the bag body is lightweight and breathable, and the drawstring is firmly fixed. It is also compatible with thickened non-woven fabrics, allowing the production of stronger drawstring storage bags, suitable for different usage scenarios.

Flexible multi-sized adaptation, quick production switch

The bag width, bag height, and drawstring length can all be adjusted directly through the touch panel. No need to replace complex molds, and you can quickly switch to the production of different-sized drawstring bags. From mini accessory storage bags to shoe and clothing dust-proof bags, it can be adapted to all scenarios, meeting the needs of multi-category and small-batch orders.

Low floor space and high cost performance, reducing investment threshold

The entire machine occupies only 5×3.2 meters. Compared to large bag-making machines, the investment in space and power is lower. Medium-sized packaging factories and start-ups can also easily start production. At the same time, the equipment has strong durability, and key components use high-quality components, with low maintenance costs. It is a high-cost-performance choice for drawstring bag production.

FAQ

Q1: For the automatic drawstring non-woven bag making machine produced by Automatic Drawstring Non Woven Bag Making Machine, will the drawstring come off during use?

A: No. The drawstring is fixed by a heat pressing process. The fixation points are firmly combined with the bag body. Under the force test, it will not come off. At the same time, the position of the drawstring threading is symmetrical, and the pulling is smooth without any jamming, solving the problem of manual threading that is prone to skewing and falling off.

Q2: Does the equipment support different materials for the drawstring?

A: Yes, the drawstring conveying module of the equipment can be adapted to various materials such as cotton ropes, nylon ropes, and PP ropes. Just adjust the conveying tension parameters, and there is no need to modify the main structure of the equipment. You can choose different drawstring materials according to your product requirements.

Q3: How is the precision of the equipment when producing small-sized drawstring bags?

A: The equipment is equipped with a high-precision photoelectric positioning system. Even when producing 50mm small-sized bag types, it can ensure the accuracy of the bag body size and the position of the drawstring. There will be no size deviation drawstring threading problems.

MACHINE PARAMETERS
