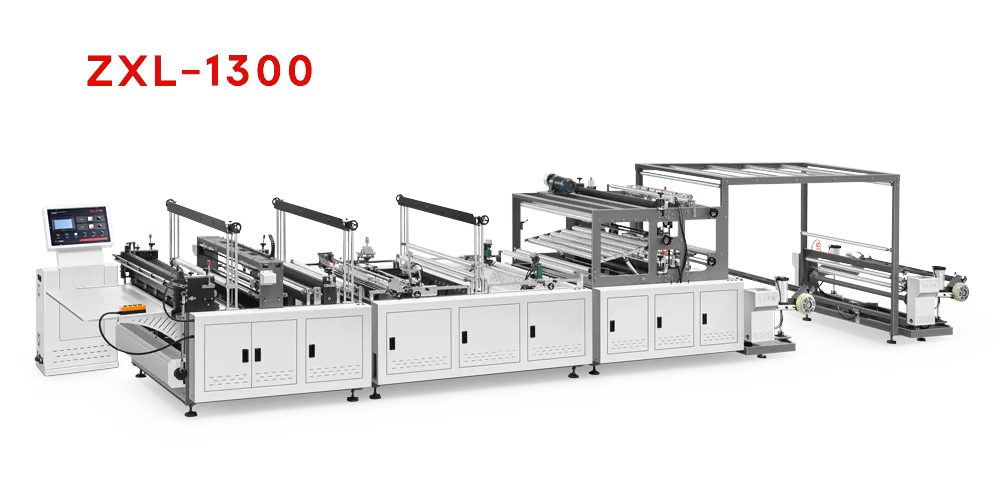

Double Feeding Non Woven Bag Making Machine

The Double Feeding Non Woven Bag Making Machine manufactured by EZ TECH is compatible with wide rolls of non-woven fabric ranging from 500mm to 1200mm. It can produce bags with a width of 200mm to 800mm and a height of 200mm to 600mm. It supports non-woven fabric raw materials of 25g/㎡ to 100g/㎡. The production speed is stable at 15 to 60 pieces per minute. The overall power of the machine is 20kw. The dimensions are 10500×6800×1900mm and the weight is 3000kg. It is an efficient and specialized model for the fruit and vegetable planting and home packaging industries.

MACHINE PARAMETERS

Product features

Double Feeding Non-Woven Bag Making Machine, equipped with independent dual feeding racks, can simultaneously convey two layers of non-woven fabric rolls. Through heat sealing or ultrasonic technology, the two layers are combined together to form a single double-layer protective bag in one step. This eliminates the need for manual compounding and splicing processes, significantly improving production efficiency while ensuring the adhesion and consistency of the double-layer bags.

The maximum width of the bag is 800mm and the height is 600mm. This machine can not only produce small-sized banana bags but also make large-sized bathroom fixtures and sofa dust-proof bags. With just one piece of equipment, it can meet the bag production needs for different categories, and there is no need to purchase additional machines.

From lightweight non-woven fabric of 25g/㎡ to thickened non-woven fabric of 100g/㎡, the equipment can be adapted for production. For different thickness raw materials, by adjusting the tension and heat sealing parameters, the feeding can be ensured not to slip and the heat sealing not to peel off. The produced bag is flat and firm, without bubbles or wrinkles.

The frame is made by welding thick steel plates, the key transmission components are selected from high-quality components. The double discharge racks are equipped with an automatic tension control and deviation correction system. Even during long-term high-speed operation, there will be no problems such as deviation of the sheet material or uneven tension. This reduces the frequency of machine shutdown for debugging, and is suitable for large-scale batch production during peak seasons.

Equipped with an independent touch control panel, parameters such as bag width, bag height, speed, and heat sealing temperature can be set all at once. The synchronization accuracy of the dual feeding can also be adjusted directly on the panel. Automatic fault alarm prompts are provided. Ordinary workers can operate independently after simple training, without relying on professional technicians.

FAQ

Q1: With this Double Feeding Non Woven Bag Making Machine, will there be any misalignment or bubbles between the two layers of the bags it produces?

A: No. The double feeding frame is equipped with a synchronous tension control and photoelectric correction system, which can adjust the positions and tensions of the two layers of sheet materials in real time, ensuring synchronous alignment of the feeding. Combined with the zone temperature-controlled heat sealing process, the two layers of non-woven fabric will be closely adhered together without any misalignment, bubbles, or detachment issues. The product consistency is very high.

Q2: Can this equipment produce banana bags with ventilation holes?

A: Yes. The equipment has reserve an interface for installing the punching device, and you can install the ventilation hole punching module according to your needs to achieve integrated production of the bags and ventilation holes. There is no need to purchase additional punching equipment. The specific punching specifications can be customized according to your planting requirements.

Q3: How stable is the equipment when producing large-sized sofa bags?

A: The frame of the equipment has been reinforced and thickened, and the transmission components are driven by large-torque motors. When producing large-sized bags, the feeding is stable, and there will be no roll shaking or cutting errors. Long-term continuous production can also ensure the size accuracy and heat sealing strength of the bags.

Q4: Besides banana bags, bathroom bags, and sofa bags, can this equipment produce other types of non-woven bag products?

A: Yes. As long as the size and raw material thickness are within the equipment's compatibility range, the parameters can be adjusted for production. For example, seedling protection bags, furniture dust-proof bags, and large-item transportation protection bags can be produced. You can communicate your production requirements with us to confirm the equipment's compatibility.
