Non-Woven Bag Making Machine

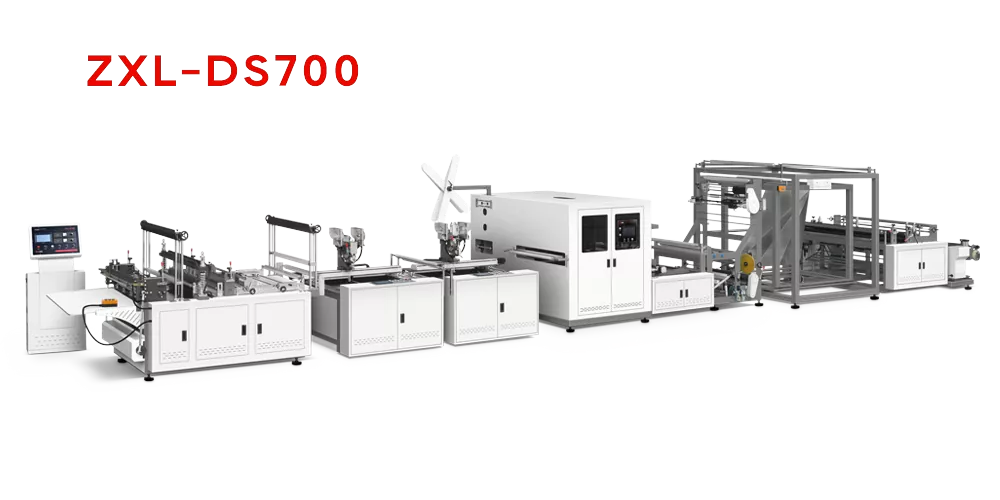

The Non-Woven Bag Making Machine supplied by EZ TECH Factory comes in two models: ZXL-DS700 and ZXL-DS800. These models are suitable for different production requirements of various sizes and widths. The production speed is stable at 40-60 pieces per minute. It can be compatible with 50-100g/㎡ non-woven fabric raw materials. The handle material also supports the same specification of non-woven fabric. The voltage supports 380V/220V, which is universal and suitable for the production environment of most domestic packaging factories. It is an ideal model for small and medium-sized packaging enterprises to build an efficient production line.

Applicable packaging categories

The Non-Woven Bag Making Machine can meet the production needs of the vast majority of non-woven fabric handbag categories in the market. Without the need to replace multiple pieces of equipment, it can satisfy the orders of different customers:

It can produce non-woven fabric shopping bags commonly used in supermarkets and convenience stores, with flexible size adjustment and strong load-bearing capacity. It can be customized with brand printing and is the mainstream choice for environmental packaging in the retail industry.

Our products support the production of three-dimensional bags with side and bottom folds. The bag body is stiff and has a good shape, and can be combined with coating processes (additional configuration required), suitable for packaging of clothing, home textiles, and gifts, enhancing the product quality.

The products can be used to make promotional handbags for corporate exhibitions and events. The handles are firm and durable, the bag body is flat, the printing effect is good, and it has both practical and advertising promotion functions.

It can produce packaging bags for clothing, home textiles, and gifts using lightweight non-woven fabric materials. The bag body is soft and breathable, and brand information can be printed, meeting the packaging requirements of clothing brands.

We support the production of thick non-woven fabric takeout packaging bags with strong load-bearing capacity, firm handles that are resistant to pulling, reusable, and in line with the environmental packaging trend of the catering industry.

MACHINE PARAMETERS

Equipment Function Configuration

Dual-station Handle Automatic Stamping System

The equipment is equipped with a dual-station handle stamping device, which can simultaneously complete the loading, positioning and hot pressing of two handles. The combination of the handles and the bag body is firm and does not fall off. The stamping position is precise and there will be no deviation or distortion. This significantly improves the production efficiency of handles and reduces the manual handling process.

Full Servo Synchronous Control System

It uses multi-axis servo motors combined with PLC control system. The feeding, folding, heat sealing, cutting and handle stamping processes are synchronized and precise. The error control is extremely small, ensuring that each finished bag has consistent size, sealing strength and handle position height. This reduces the defect rate and raw material waste.

Automatic Tension Adjustment and Deviation Correction System

The raw material feeding end is equipped with an automatic tension control and photoelectric deviation correction device. It can monitor the position and tension of the roll material in real time, automatically adjust the deviation, and avoid problems such as roll deviation and feeding slippage during production, ensuring the stability of long-term continuous production.

Zone Temperature-Controlled Heat Sealing System

The heat sealing module adopts a zone temperature control design. The heat sealing temperature and pressure can be precisely adjusted according to the thickness and material of the raw material. The seal is firm and flat, and there will be no scorching edges, holes, or incomplete welding. It is suitable for the production of different thickness non-woven fabric raw materials.

Modular Body and Convenient Maintenance Design

The equipment adopts a modular body structure. Each functional unit is independently arranged. The disassembly and assembly are convenient. During later maintenance and repair, there is no need to disassemble the entire machine, saving time and effort. At the same time, it is equipped with an independent touch control operation panel. The parameter settings are simple and intuitive. Faults are automatically alarmed and prompted, making it easy for beginners to operate.

Industrial-grade Durable Configuration

The main frame of the Non-Woven Bag Making Machine is welded with thick steel plates. The key transmission components and electrical components use high-quality brand components. There will be no faults during long-term continuous operation. The equipment has a long service life, reducing the later maintenance costs, and is suitable for the high-intensity production requirements of packaging factories.

FAQ

Q1: Can this Non-Woven Bag Making Machine produce three-dimensional bags with side and bottom folds?

A: Yes, the equipment is equipped with side and bottom folding forming mechanisms, which can produce three-dimensional bags with side accordion and bottom accordion. The bag body is stiff and has better load-bearing capacity, suitable for packaging needs such as gifts and clothing that require large capacity. The fold edge size can be adjusted according to your order requirements.

Q2: Can the handles and bag body be made of different types of non-woven fabric?

A: Yes, the loading mechanism for the handles and the loading mechanism for the bag body are independent. Different materials and thicknesses of non-woven fabric can be used separately to produce handles and bag bodies. For example, using thickened non-woven fabric for handles and ordinary non-woven fabric for the bag body, taking into account both cost and load-bearing capacity.

Q3: Can the bags produced by this equipment be printed with LOGOs?

A: The equipment has reserved installation interfaces for printing modules. You can install single-color or dual-color online printing devices according to your needs to achieve integrated printing of LOGOs and patterns on the bag body. Without purchasing additional printing equipment, it can also support the production process of printing first and then making the bags.

Q4: How much space is required for equipment installation?

A: The overall size of the ZXL-DS700 model is approximately 14000×2050×1900mm, and the ZXL-DS800 model is approximately 14500×2350×2100mm. Space for raw material loading and finished product storage needs to be reserved. We can provide installation suggestions and site planning schemes based on your workshop layout.
