Non-Woven Flat Bag Making Machine With Online Handle Attaching

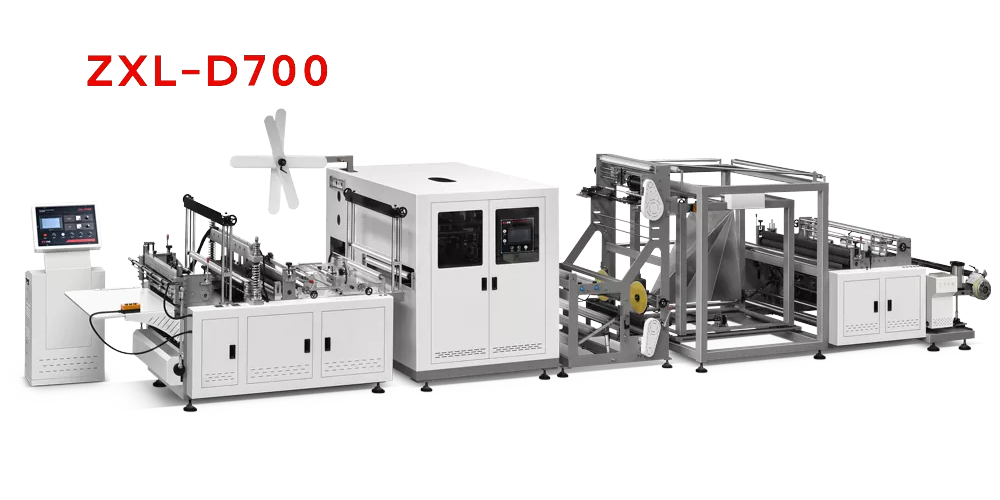

Compared with the traditional "separate bag-making and handle attachment" modular solution, the Non-Woven Flat Bag Making Machine With Online Handle Attaching provided by EZ TECH manufacturer eliminates the intermediate manual handling and secondary processing steps, resulting in higher efficiency and lower error rate. The ZXL-D700 model is suitable for raw material rolls with widths ranging from 500 to 1300mm, while the ZXL-D800 model supports raw materials with widths ranging from 500 to 1600mm. The production speed is stable at 40-120 pieces per minute, making it highly suitable for supermarkets and brand customers with large order volumes and high requirements.

MACHINE PARAMETERS

Product features

Attach the handle online, and the efficiency doubles

The non-woven flat bag making machine with online handle attachment has an independent loading and welding module for the handle. The handle completes the process from raw material to finished bag on one machine. There is no need to move the finished bags to another machine, and the labor cost and error rate are significantly reduced. The production efficiency is nearly twice that of the split-type solution.

The handle is firmly welded and has a stronger load-bearing capacity

For the usage scenarios of hand-held bags, we have upgraded the ultrasonic welding process. The joint between the handle and the bag body is flat and firm, with uniform force distribution, and has a stronger load-bearing capacity than ordinary models. Even when filled with heavy objects, it is not prone to tearing. Customer feedback is very high.

Wide width and multiple specifications, suitable for most orders

The bag width range covers 100-800mm, the bag height is 200-680mm, and the length of the handle also supports adjustment from 380-600mm. Whether it's a small gift bag or a large shopping bag, one machine can handle it, and no additional investment is needed for different-sized orders.

Stable operation, high yield, and less waste

The optimized tension control system and feeding structure ensure that when producing different weights of raw materials (30-100g/㎡), the bag body is flat and the feeding is precise, with few problems such as deviation and uneven sealing. The yield is high, helping you save a lot of raw material costs.

Simple operation, quick to learn, and easy maintenance

The high-definition touch screen interface makes all parameters clear at a glance. Bag length, speed, and handle position can be directly set on the screen. The modular structure also makes daily maintenance simple, and it is convenient to replace wearables, without relying on complex professional technicians.

Manufacturing Process

Raw Material Unrolling and Tension Control: The non-woven fabric raw materials are fed from the tail of the Non-Woven Flat Bag Making Machine with Online Handle Attachment, passing through multiple sets of guide rollers and tension controllers, ensuring that the raw materials remain flat and the tension is uniform, laying a solid foundation for the subsequent shaping process.

Bag Body Forming and Edge Sealing: The raw materials are folded and heat-sealed at the edge to form the main body of the bag. The sealing temperature and pressure can be adjusted according to the weight of the raw materials to ensure a secure and non-hardening edge.

Online Handle Feeding and Welding: The handle raw materials are sent in from a dedicated feeding frame, passing through cutting and positioning, and then precisely welded onto the bag body by the ultrasonic welding head, with extremely small positional errors.

Fixed-length Cutting and Finished Product Stacking: After the handle is welded onto the bag body, it undergoes high-precision servo cutting with a knife, cut into individual bags according to the set size, and finally output neatly by the stacking mechanism at the tail of the equipment, ready for direct packaging and storage.
