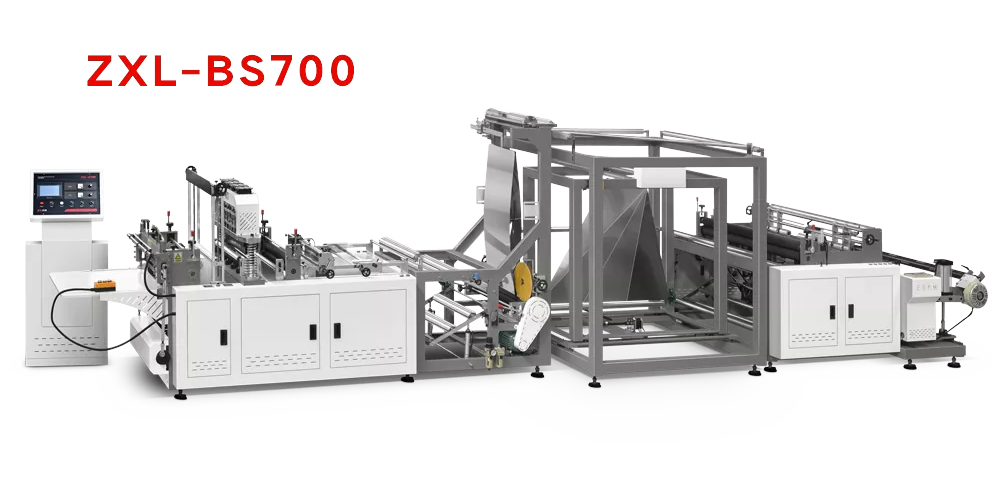

Non-Woven Fruit Bag Making Machine

EZ TECH Factory supplies you with the Non-Woven Fruit Bag Making Machine. It comes in two models: ZXL-BS700 and ZXL-BS800, which can be selected according to different sizes of fruit bags. It supports 20-100g/㎡ of non-woven fabric materials and has a stable production speed of 40-60 pieces/minute. The voltage is compatible with both 380V and 220V, which is universal and can be adapted to most domestic workshop power supply environments. The overall layout is compact, and it can be easily arranged in small and medium-sized workshops.

MACHINE PARAMETERS

Product advantages

1. The Non-Woven Fruit Bag Making Machine has optimized the molding structure to meet the specific requirements of fruit bags. It can produce non-woven fabric bags with smooth edges and uniform body, without any excessive hard edges or burrs on the bag body. During bagging, it will not scratch the fruit skin. At the same time, it retains the natural breathability of the non-woven fabric, meeting the basic protection needs for fruit preservation, anti-scuffing and anti-insect purposes.

2. The raw material widths of the two models respectively support 500-1300mm and 500-1600mm. The bag widths range from 100 to 1200mm. The bag heights can be adjusted from 200mm to 680mm. From cherries and strawberries to watermelons and pomelos, all kinds of fruit and vegetable bagging can be produced. There is no need to frequently replace equipment, and it can meet the packaging needs of most fruit and vegetable categories.

3. The equipment has excellent compatibility with lightweight non-woven fabric raw materials of 20-40g/㎡. During production, the feeding does not slip and the heat sealing does not cause edge burning. It can stably produce thin non-woven fabric fruit bags. Compared with thick non-woven fabric, it can significantly reduce the raw material cost of each bag, without affecting the basic protective effect. It is suitable for large-scale order production.

4. Equipped with an independent touch control panel, production parameters can be set in one click. The size, speed, and heat sealing temperature can all be adjusted directly on the panel. Faults will automatically trigger alarms for prompt notification. No complex debugging procedures are required. Ordinary workers in the workshop can operate independently after simple training, reducing the reliance on professional technicians.

5. The frame is made of thickened steel plates, the key transmission components and heat sealing components all use durable components. Even during long-term continuous production, it can maintain stable heat sealing strength and cutting accuracy, reducing the frequency of machine shutdown for debugging. It is suitable for the rush production needs of large-scale orders during the peak season of fruits and vegetables.

Why is it suitable for fruit bag production?

Breathable and non-stuffy fruit, meeting the needs of fresh produce preservation

The non-woven fabric inherently has the characteristics of breathability and water vapor permeability. The heat-sealed edges of the fruit bags produced by this equipment are firm but the bag body is not overly compressed, preserving the breathable pores of the raw materials. This can reduce the problem of fruit rot caused by heat and water vapor accumulation, and extend the preservation period.

Scratch-resistant and pest-proof, protecting the appearance of fruits

The edges of the bags produced by the equipment are smooth without hard edges or burrs, and the bagging process will not scratch the fruit skin, the non-woven fabric material can effectively isolate external dust and small insects, reduce pesticide residue contact, and improve the appearance of fruits, meeting the packaging standards for high-end fruits.

Suitable for lightweight requirements of batch bagging

The thin and lightweight non-woven fabric raw materials combined with the stable production efficiency of the equipment can produce one-time fruit bags at low cost and in large quantities, suitable for large-scale bagging operations in orchards and planting bases. Compared to traditional paper bags, non-woven bagging is more resistant to rain and less prone to damage, and can protect fruits in outdoor environments.

Customizable sizes, suitable for different fruit categories

From small berries weighing several grams to large fruits weighing several kilograms, corresponding-sized bags can be produced by adjusting the equipment parameters. No additional mold customization is required, meeting the personalized order needs of different growers and packaging factories.

FAQ

Q1: Can this Non-Woven Fruit Bag Making Machine produce fruit bags with holes and zippers?

A: It supports custom installation of hole-making and zipper-line heat sealing devices. According to customer requirements, breathable holes or zipper positions can be reserved at the bag openings, suitable for the production of fruit bags that require later zipping. Specific details can be confirmed by contacting us for customization.

Q2: Will there be problems with loose heat sealing or burnt edges when producing thin fabric?

A: The heat sealing module of the equipment adopts a zone temperature control design, which can precisely adjust the heat sealing temperature and pressure according to the thickness of the raw material. For 20-40g/㎡ thin non-woven fabric, we will pre-adjust the dedicated parameters to ensure that the heat-sealed edges are firmly attached without unraveling, and at the same time, there will be no burnt edges or holes.

Q3: How large of a space is required for installation?

A: The overall size of the ZXL-BS700 model is approximately 8000×2050×1900mm, and the ZXL-BS800 model is approximately 8500×2350×2100mm. With sufficient space reserved for raw material feeding and finished product storage, medium-sized workshops can also be easily installed and used. We can provide installation suggestions based on your workshop layout.
