Non Woven Box Bag Making Machine With Online Handle Attaching

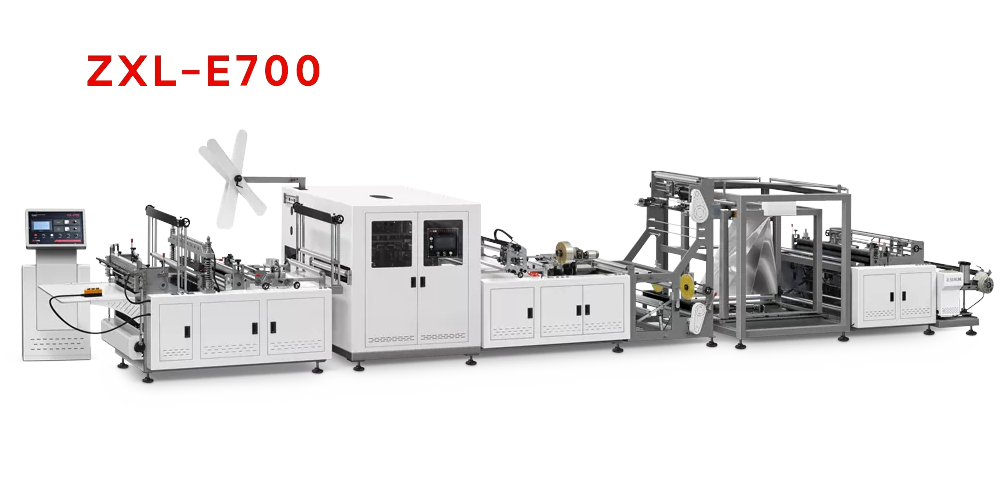

EZ TECH offers factory-direct Non Woven Box Bag Making Machine With Online Handle Attaching. There are two models: ZXL-E700 is suitable for raw material rolls with widths ranging from 500 to 1300mm, while ZXL-E800 supports raw materials with widths ranging from 500 to 1600mm. The bag width covers 100 to 800mm, and the bag height can reach up to 680mm. The production speed is stable at 40 to 120 pieces per minute. It is the preferred equipment for commercial stores, clothing, and gift industries to create high-quality three-dimensional handbags.

MACHINE PARAMETERS

Product Features

Three-dimensional box-shaped automatic forming

Non-Woven Box Bag Making Machine with Online Handle Attachment Features a high-precision edge folding forming module, which can automatically fold the non-woven fabric into a three-dimensional box shape. The bag bottom and sides naturally expand, resulting in a fully formed bag that is plump and stiff, with strong standing stability and less prone to softening when filled with items. Compared to ordinary flat bags, the texture and practicality are significantly improved.

Online ultrasonic lifting handle

The entire process of loading materials, cutting, and welding on the lifting handle is fully automated, without the need for manual intervention. The ultrasonic welding process ensures a firm bond between the handle and the bag body, with uniform force distribution and strong load-bearing capacity. Even when filled with heavy items, the bag is less likely to tear. The finished product quality is stable, reducing errors and rework caused by manual lifting handles.

Flexible adjustment for multiple specifications

The bag width, bag height, and handle length can all be adjusted within the equipment parameter range. The ZXL-E700/800 model can cover a wide range of specifications, from small gift bags to large shopping bags. One machine can meet the needs of different orders, eliminating the need to purchase additional equipment for different specifications and ensuring strong adaptability.

High-precision cutting and finished product stacking

Using a servo fixed-length cutting system, the cutting accuracy is high, and the bag openings are flat without frayed edges. The equipment tail is equipped with an automatic stacking mechanism, allowing the finished bags to be output neatly, directly packaged for storage, reducing the need for manual sorting, and improving production efficiency.

Intelligent touch control operation and fault detection

The high-definition touch control operation screen makes it clear to see parameters such as bag length, speed, and handle position. Even beginners can quickly get the hang of it. The equipment is equipped with automatic fault detection and alarm functions. When an abnormality occurs, it will automatically prompt, facilitating quick problem detection and reducing downtime.

Notes for Attention

Installation and commissioning stage

The Non Woven Box Bag Making Machine with Online Handle Attachment requires professional technicians to perform on-site installation and commissioning. During installation, ensure the ground is level and the equipment is firmly fixed to avoid vibration during operation that may affect accuracy; during the commissioning stage, gradually adjust the edge folding tension, welding temperature, and cutting parameters to ensure that the bag shape and handle welding effect meet the requirements and avoid improper parameters causing quality issues in the finished products.

Daily production operation

Operators need to undergo professional training to be familiar with the equipment operation procedures and safety regulations; before starting the machine, check if the raw material roll is installed properly, the tension is stable, and there is sufficient handle raw material; during operation, avoid touching the moving parts such as edge folding, welding, and cutting with hands to prevent accidents.

Raw material adaptation and storage

Use raw materials of the appropriate specification (30-100g/㎡) and handle raw materials (50-100g/㎡) that are suitable for the equipment. The raw material weight and width should be within the equipment's compatibility range; avoid using inferior or incompatible raw materials to prevent equipment malfunctions, reduced product quality, or component damage; the raw materials should be stored in a dry and ventilated environment to avoid affecting the welding effect.

Regular maintenance and servicing

lubricate and maintain the transmission chains, bearings, and guide rails of the equipment every week, and tighten screws and connecting parts; check the status of ultrasonic welding heads, cutting knives, and edge folding molds every month, clean dust and edge scraps in time, replace aging wear parts; at the same time, check the operation status of servo motors and control systems to ensure the equipment operates stably for a long time and extends its service life.

Shutdown and long-term storage

After daily shutdown, turn off the power and air source, clean the surface and key components of the equipment, and take dust-proof protection measures; if the equipment is not used for a long time, take measures to prevent moisture and dust, regularly power on for inspection to prevent components from getting damp and damaged; before restarting, conduct a comprehensive inspection of the equipment status to confirm there are no abnormalities before starting production.
